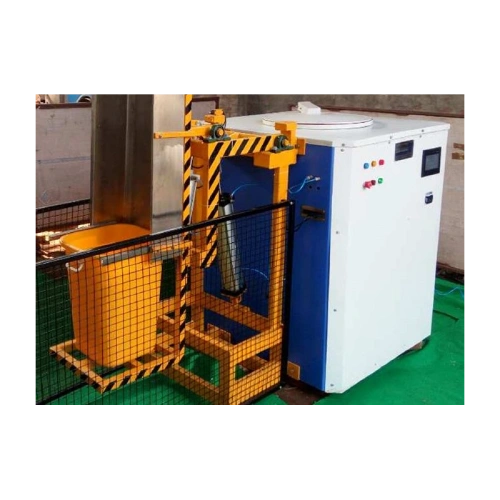

    INTEGRATED MICROWAVE WITH INBUILT SHREDDERS
    Product Overview

    Product Overview

    Biomedical waste management process is essential for healthcare institutions striving to prevent and combat hospital-acquired infections and other biohazards.Sambion has developed the IMS range to meet the needs of medical centres, clinics, hospitals and laboratories of all sizes generating anywhere from a few kilos to several tonnes of biohazardous waste per day.

    Based on innovative technology which combines grinding with microwave sterilization, Sambion machines are ultra-compact and completely automated. No prior segregation of waste is required. This equipment can transform all types of clinical by-products into sterilized, inert and unrecognisable waste within its single, unique vessel. Once the biomedical waste has been processed, it can then be considered normal municipal waste without any biological risk to anyone handling it. Sambion solutions provide traceability, safety and a guaranteed level of sterilization. They can also provide a massive reduction in the cost of waste removal compared to other standard solutions (collection, incinerators, autoclaves, chemicals).

    The Sambion complies with all international regulations on rendering clinical waste safe (STAATT recommendations) as well as with the strictest standards adopted in numerous countries, most notably standard. The equipment is manufactured in Indian.

    Specifications

    Technical Specifications

    PLC Control Panel

    Fully automated machine with PLC control panel and online printer

    Operating temperature

    Operating temperature up to 110°C+

    Door Mechanism

    Automatic door operating mechanism

    Waste Shredding Mechanism

    Provided with State of Art waste shredding mechanism

    Silicon Gasket

    High temperature resistant silicon gasket

    Vacuum Pump

    Silent vacuum pump

    Programmable Cycles

    Multiple pre programmed cycle option

    Integrated Microwave + Shredder
    Integrated Microwave + Shredder

    Leakage Test

    Leakage test

    Start Up Time

    Low start up time

    Alarm Type

    With audio & visual alarm

    Steam Generator

    Steam Generator – Optional Item

    Microwave Generator

    Microwave Generator

    Microbial Inactivation

    Microbial inactivation Spore up to 6log10, Virus up to 6log10in compliance with STAATT and NFX30-503

    Benefit

    Benefit

    Full decontamination

    Biohazardous waste is sterilized with microwaves (heat it up to 110°C) and allows microbial inactivation of up to 6log10.

    Safe processing

    Microwave sterilization technology does not require pressurization, and this removes any high pressure risk. Moreover, the microwaves are confined to the inside of the vessel to avoid operator exposure to radiation.

    No liquid effluent

    The treatment process does not produce any steam or liquid effluent, which means no consumption of water and no need to include an effluent drainage system in its installation.

    No segregation

    The Sambionis suitable for all types of biomedical waste (needles, glass, solids, liquids, etc.)

    Easy maintenance

    The equipment is built using robust technology. Preventive maintenance plan/calendar with alarm.

    Reduces weight by 25% and volume by 80%

    Depending upon the type of the Biomedical waste, which is converted to inert waste similar to municipal waste.

    Technology

    With its automated grinding and microwave sterilization process contained in a single vessel, the Sambion can produce bacterial inactivation (higher than 8log10) of biomedical waste in less than 30 minutes, in complete safety and without intermediate handling. Unlike autoclave technologies, our system does not require the vessel to be pressurized. The Sambion converts biomedical waste into dry waste which is inert and completely disinfected, reducing its weight by more than 25% and its volume by 80%. The end product is similar to municipal waste and can then be fed into standard urban waste systems.

    Full Datasheet

    Major Specification Table

    Produced as model IMS 200 Series specifications

    Capacity (Kg/Hour) 10 20 50 100 150 200 250 Custom Designed 10-500
    Chamber Material SS316L/304
    Sterilization Temperature up to 1100C
    PLC + HMI Control ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
    Vacuum Drying ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
    Single / Double Door ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
    Moisture Generator Inbuilt
    Thermal Printer Provided
    Automation Grade Automatic / Manual
    Phase Single / Three  Phase
    Applications Hospitals, CBWTF (Common BioMedical Waste Treatment Facility)
    Manufacture License CDSCO
    Standards BIS – IS:3829 Latest Edition with ISI mark
    Certificates: IAF, NABCB, NSIC, MSME, ISO, CE (MDD), CE (PED), ISO 13485, ISO 9001 etc.
