Specifications
Technical Specifications
Low Speed
Low speed- low noise
Blades
Blades are abrasion resistant graded steel- duly heat treated
Door Opening Safety Mechanism
Charging door and waste removal doors are easy operable complete with door opening safety mechanism – thus preventing any aerosol escaping
Manual Bag/ Bucket Filling Mechanism
Provided with manual bag/ bucket filling mechanism
Reverse Rotation Mechanism
Provided with reverse rotation mechanism
PLC Control Panel
Provided with PLC Panel and emergency stop switch
Audio-Video Alarm
Provided with Audio-Video alarm


Manually Loading
Manually loading (into the hopper)Shredders stop automatically for safety of the operator Automatic reverse motion of shaft, if overloaded, Interlocking with Limit Switch between hopper lid and unloading door lid

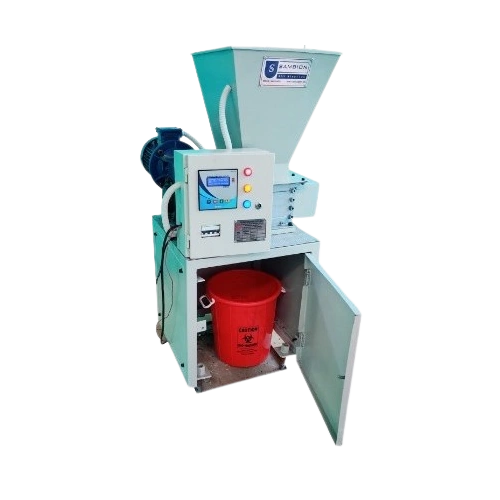

Biomedical Waste Shredding Machine
Biomedical waste shredding machine is used to destroy waste such as Syringes, scalpels, glass vials, blades, plastics, catheters, broken ampules, intravenous sets/bottles, blood bags, gloves, bandages etc.
Shredding
Shredding is a process by which waste is de shaped or cut in to smaller pieces, so as to make the waste unrecognizable. It helps in prevention of reuse of noninfectious Biomedical waste and also acts as identifier that the waste is safe to depose off.

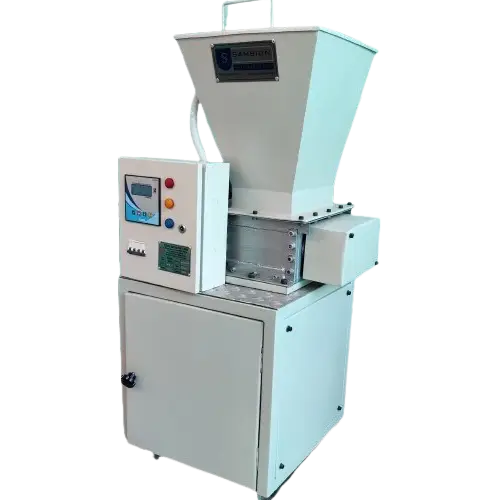

Biomedical Waste Shredder
Shredding is a process by which waste material is deshaped /cut in to smaller pieces, so as to make waste unrecognizable. It helps in prevention of reuse of biomedical plastic waste and also acts as identifier that the waste is safe to dispose off.
Full Datasheet
Major Specification Table
Produced as model Sambion910 Series specifications
| Capacity (L) | 25 | 50 | 100 | 150 | 200 | 250 | 300 | Custom Designed |
| Chamber Material | Mild Steel | |||||||
| PLC + HMI Control | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Double Door | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Shafts | 1 or 2 | |||||||
| Cutting Discs | 8/16 | 12/24 | 32 | 40 | 48 | 52 | 56 | 8-60 |
| Automation Grade | Automatic / Manual | |||||||
| Phase | Single / Three Phase | |||||||
| Applications | Bio Medical waste | |||||||
| Certificates: | IAF, NABCB, NSIC, MSME, ISO, CE (MDD), CE (PED), ISO 13485, ISO 9001 etc. | |||||||
| ↓ Brochure | Download | Download | Download | Download | Download | Download | Download | Download |
